Roll Feed Cutting Plotter-GR7000
GR7000 series is engineered for signage, automotive aftermarket, printing &cutting, etc. It shares most of the features of our GR8000 series while light in weight and more cost-effective.
The GR7000 series is well applied to process vinyl stickers, reflective films, PPF, screen protectors, sandblast rubber stencil, photo-masking films, heat transfer materials, just name a few.
 |  |  |
| Automotive After Market | Vinyl Signage | Die Cutting |
FeaturesSpecifications
 | | Static Electricity FreeStatic interference is a big headache to cutters, while that is not the case with Gunner, as we eliminate it and have tested that year-round in different weathers. |
 | | Grating RulerInevitably material surface is not level from point to point, the Grating Ruler is applied to measure the distance between blade tip and material surface, and the cutting depth is adjusted in every 0.01mm by the controller accordingly. Then the blade travels up and down as material surface goes to keep the same cutting depth at any position of the tool paths across the entire table. In short, Grating Ruler is of key importance for consistent cutting depth. |
 | | Advanced Tool CarriageThe tool carriage adopts the structure of sports car, using of silent voice coil motor makes it outstrip it’s rivals. The tool carriage is featured as fast, agile and no overheat for long-time non-stop operation. It is a leading tool carriage in the same field in China. |
 | | Servo DriveIntelligent servos bring out smooth acceleration, big torque, precise cutting / plotting operation, excellent durability and volume production. Servos ensure the vinyl cutter to run at Max. Speed: 600mm/s while the acceleration reaches 4000mm/ s2. |
 | | Making Blade-tip Compensation by ChipGunner makes blade-tip compensation with Chip instead of software, the cutter works with constant high precision no matter what kind of CAD / CAM software is applied. |

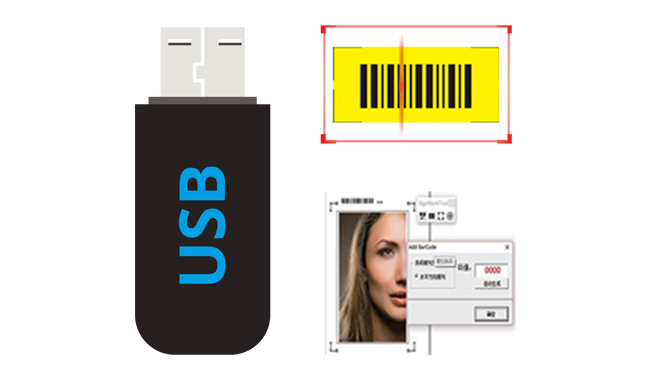

 | | Automatic Data Retrieving with Bar-codeOne touch to find the cutting job out of those saved in the USB memory by scanning the printed Bar-code, while no need to connect to computer. Multiple jobs are processed automatically while production errors are eliminated. |
 | | Segmented Area Cutting OperationAdditional registration marks are available for more precise axis alignment.Contour cutting is performed sequentially in each segmented area, which improves accuracy and tracking for heavier media or media that has been laminated. |

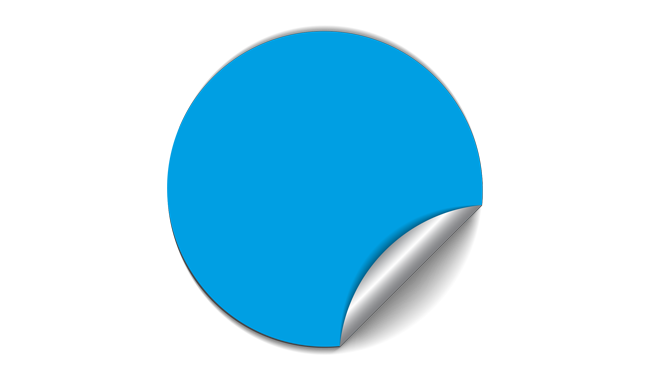

 | | Clean Smooth Edge QualityThe Grating Ruler and correspondent cutting force management deliver clean smooth edge quality, even for the most complex jobs. Pealing off the cutting piece/waste material easily can cut down workload greatly for the users. Advanced algorithm developed by Gunner eliminates the distorted, rounded and lifted corners obviously. |
 | | Cutting Force in 8 StepWith Gunner software, user is enabled to put different colors for different cutting paths, and set the processing sequence as color sequence. This is a important feature for cutting medias with multiple layers, which requires different cutting force in different layer. |

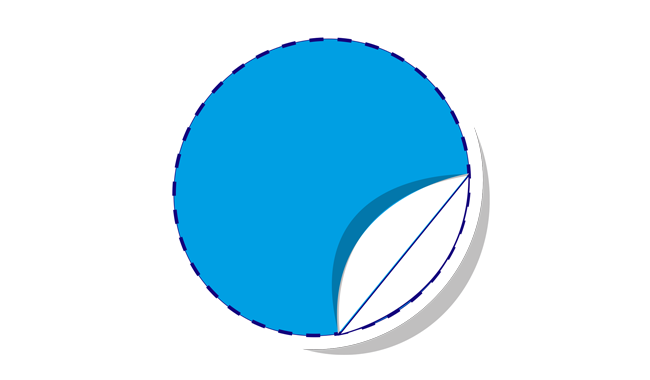

 | | Dotted Lines CuttingDotted line cutting is applied for cutting medias with 2 layers typically and also kinds of paper. The feature asks for accurate control of cutting forces. |
 | | Series Cutter Blades AvailableAngle: 30° / Φ2.0mm for prismatic reflective sheeting, thick media or small character
Angle 60° / Φ2.0mm for reflective film
Angle 45° / Φ2.0mm for PPF |
| Model | GR7000-590 Desktop GR7000-140 GR7000-180 |
| Max.Cutting Width | 450mm (non-contour cutting) 1290mm (non-contour cutting) 1630mm (non-contou cutting)
430mm (contour cutting) 1220mm (contour cutting) 1520mm (contour cutting) |
| Max. media width applicable | 570mm 1440mm 1780mm |
| Min. media width applicable | 70mm |
| Max.Cutting Speed | 800mm/s |
| Max.Cutting Force | 450g in 8 steps |
| Cutting force setup | Adjustable in every 1gf |
| Dotted lines cutting | Included |
| Drive on X,Y axis | Servos |
| Mechanical resolution | 0.0125mm |
| Min. letter size | 3 / 3mm
|
| IOS | Win11 / 10 / 8 / 7 |
| Memory buffer | 2MB |
| CAD / CAM software | Windows drive，SignWorkPro ,CADtoPlotPro， Flexi, SignCUT |
| LCD | English / Chinese |
| File format | HP-GL , PLT |
| Port in standard | U Stick memory，USB , RS-232 |
Registeration marks
recognition | Red laser sensor or CCD camera |
| Power input | AC 90- 220V，50-60Hz |
| Power consumption | 120W |
| Cutter holder | 1 for cutter blade , 1 for ball pen |
| Cutter blade diameter | 2.0mm |
| Cutter blade angles | 30° , 45° , 60° |
| Media stock roller plates | for option Included |
| Basket | for option Included |
| Package size W/L/H | 900 / 350 / 400mm 1800 / 400 / 570mm 2200 / 400 / 570mm |
| Gross / Net weight | 23 / 21kg 68 / 48kg 85 / 57kg |
